free Stage twin - 3D Scanner for Ear Impressions

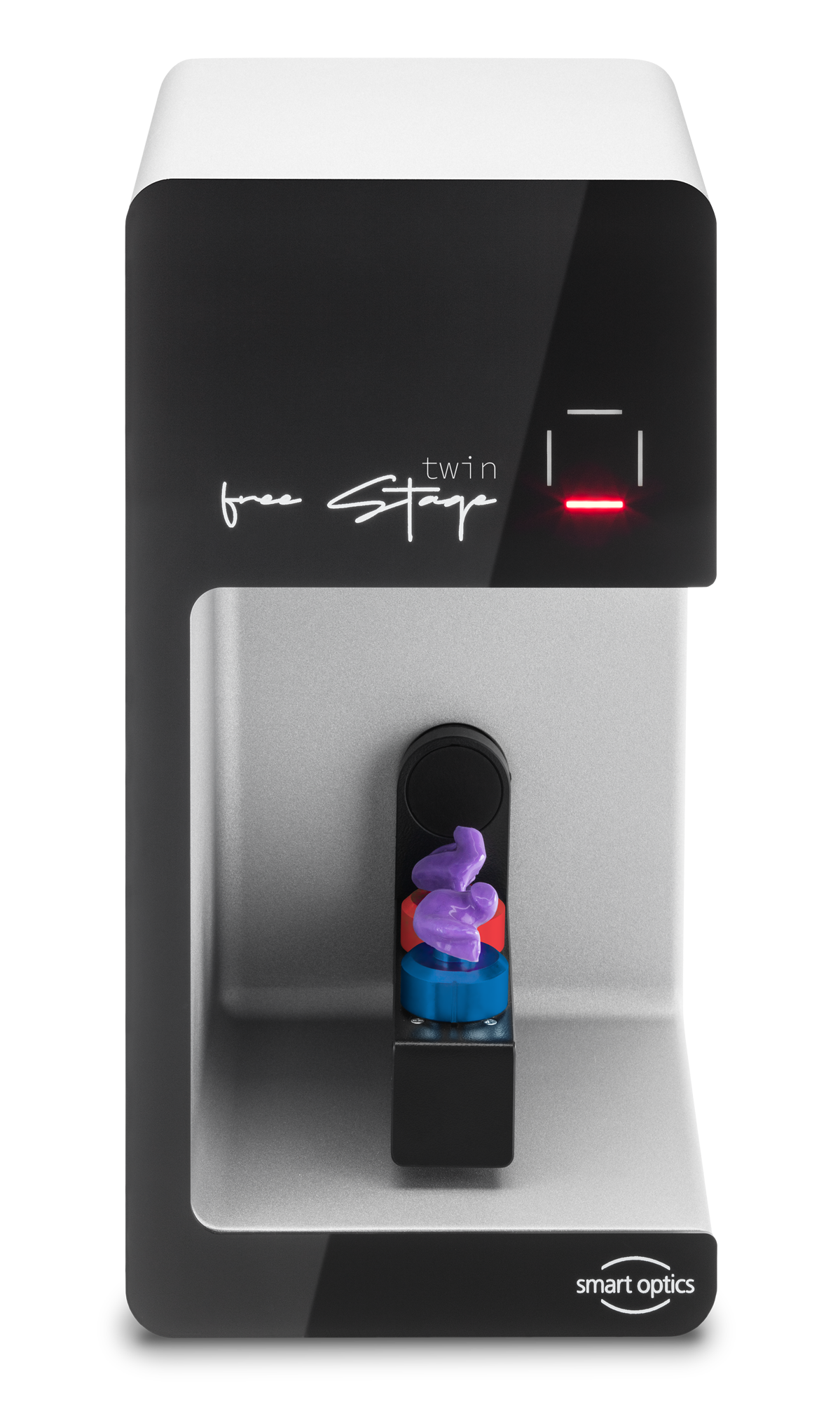

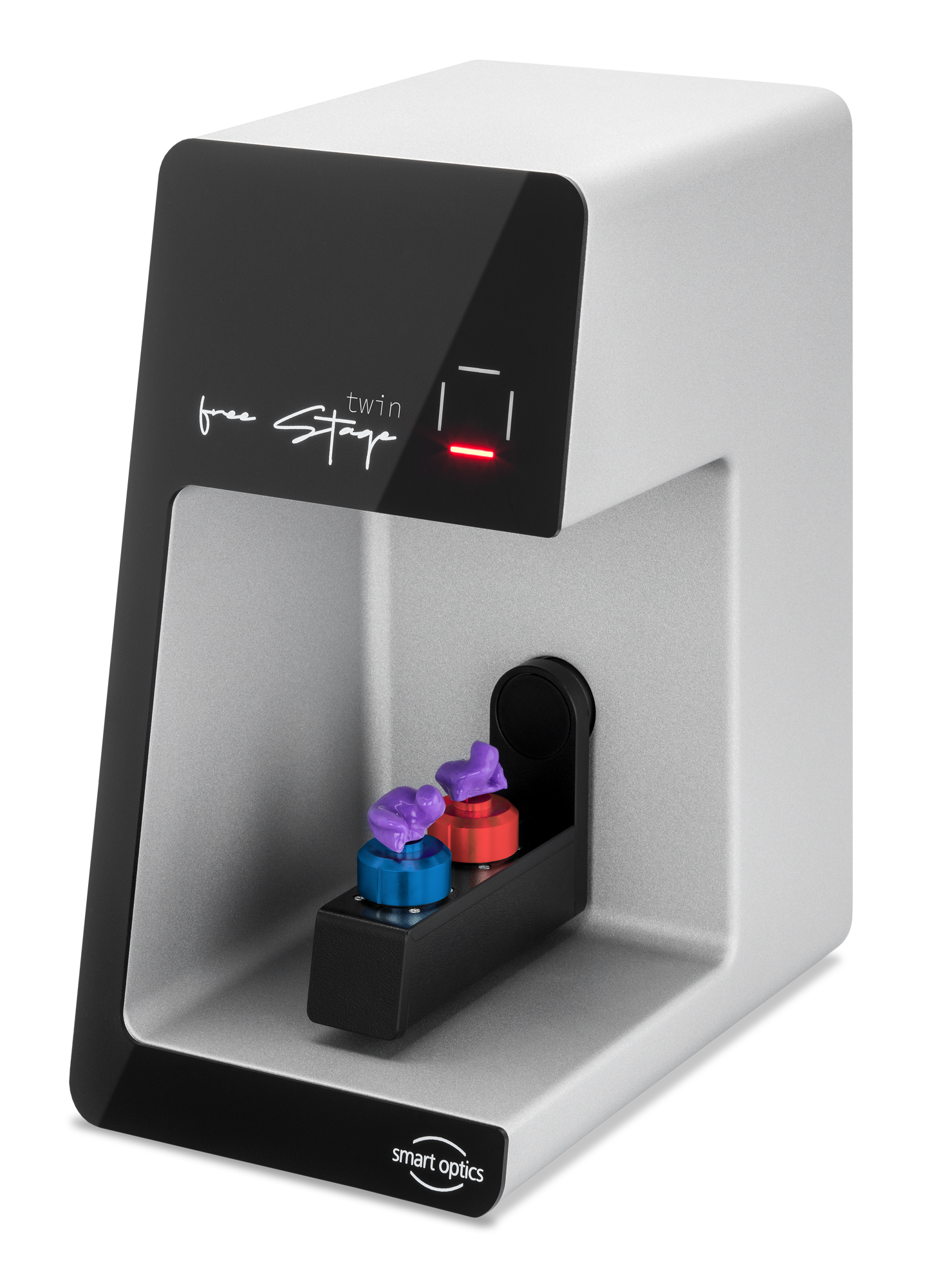

free Stage twin – Where Precision Meets Elegance

The free Stage twin is more than just a 3D scanner – it's a true centerpiece for any modern workspace. With its sleek, contemporary design and durable build, it combines visual appeal with functionality to deliver an exceptional scanning experience for professionals and clients alike.

Equipped with the ability to scan two impressions simultaneously, it boosts efficiency, streamlines workflows, and significantly reduces waiting times for your customers. Thanks to its open architecture, the scanning process can be observed in real time – promoting trust and transparency. Colored needle adapters assist with visual impression matching, while the optional color scan function captures fine surface details in vibrant color.

The capacitive touch sensor allows users to start the ultra-quiet scanning process directly from the device – for fast, intuitive operation. Open-standard output formats ensure smooth integration of 3D data into industrial production environments or widely used CAD software solutions. Full compatibility with Noah and winIPRO further simplifies your digital workflow.

Technical Specifications:

• Scan mode: Simultaneous scanning of 2 impressions

• Dimensions: 186 × 292 × 348 mm

• Weight: 6.5 kg

• Connections: USB 3.0

• Material: PUR integral foam & acrylic glass

• Voltage: 100–240 VAC, 50/60 Hz

• Warranty: 36 months (optional 12-month extension)

Scope of Delivery:

• free Stage twin

• 2× object holders

• Power cable

• USB 3.0 cable

• Scanning software incl. calibration data

Performance Data:

• Accuracy (ISO 12836): < 9 µm

• Scan time: 13 seconds (plus 3–10 seconds for data matching depending on PC performance)

• Simultaneous scans: 2 impressions

• Measurement method: Structured light triangulation

• Light source: White LED

• Resolution: Variable

• Output formats: STL, HPS, PLY, ASCII, MSH

Maximum efficiency. Ultimate precision.
Experience the future of audiology with the free Stage twin.
