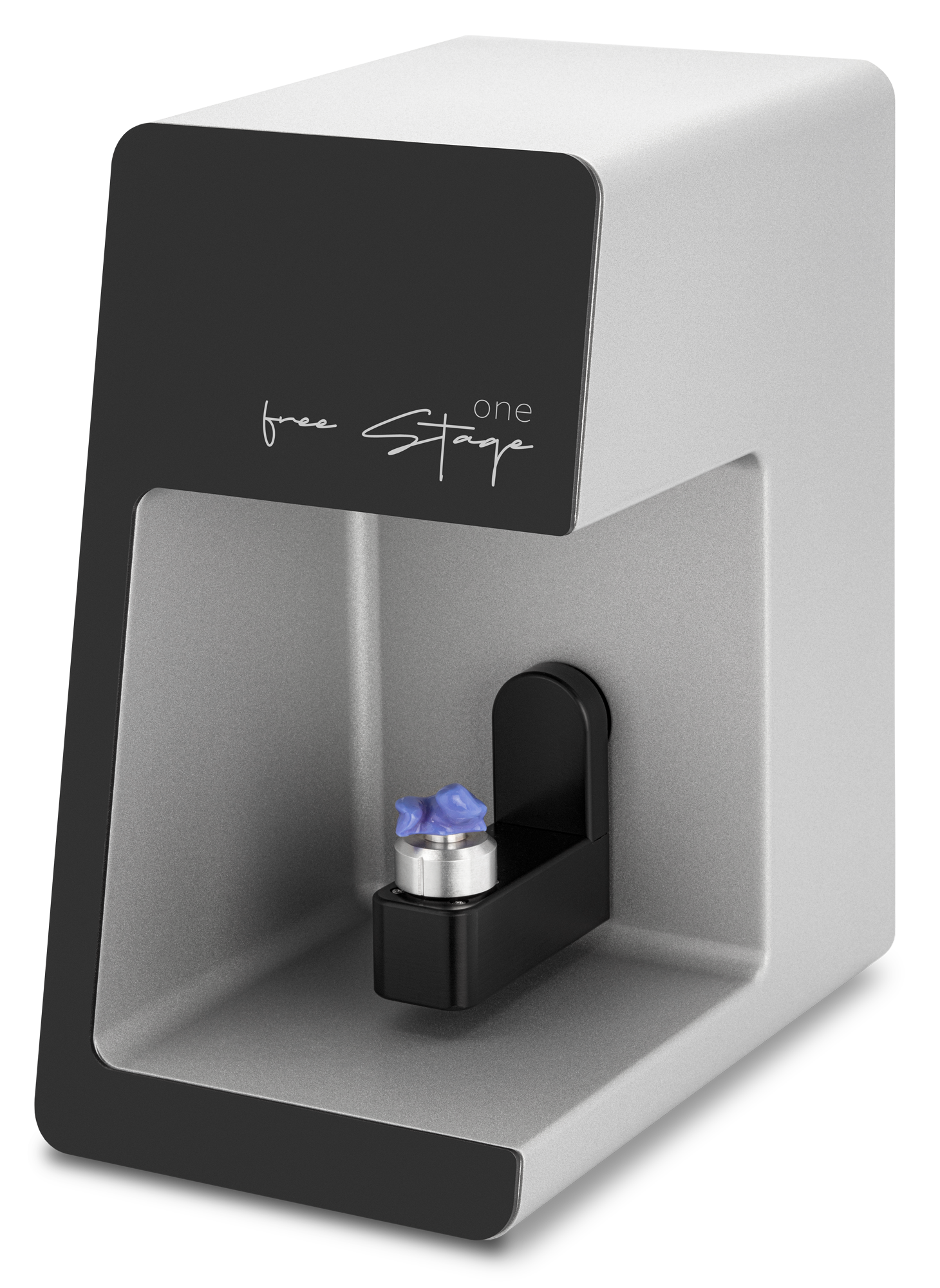

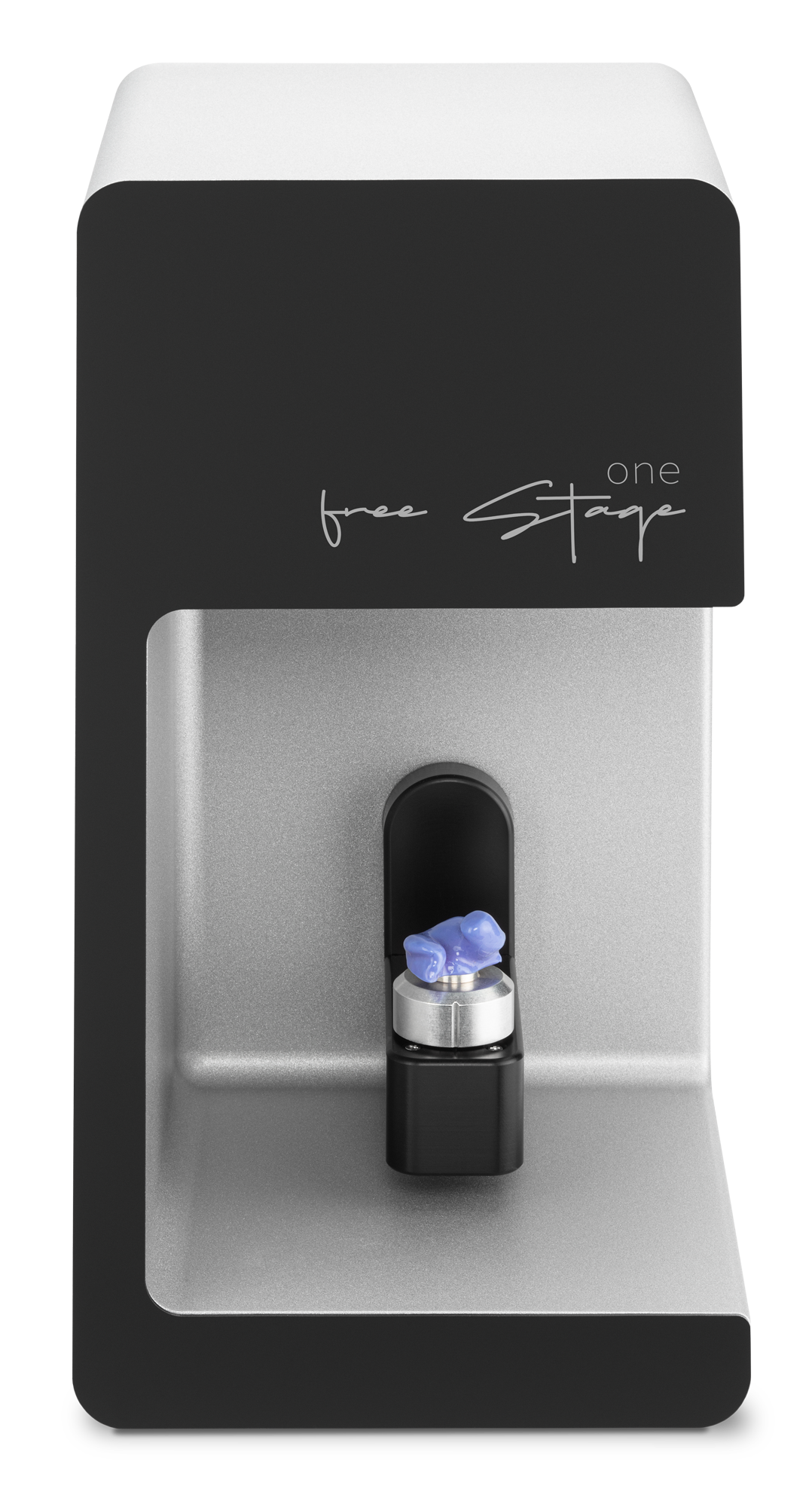

free Stage one - 3D Scanner for Ear Impressions
Product information "free Stage one - 3D Scanner for Ear Impressions"
free Stage one – The Modern, Open Shop Solution for Acousticians
The free Stage one has been specifically developed for acousticians looking for a modern and open shop solution. Thanks to the unobstructed view of the measurement area, customers can experience the entire scanning process up close – an impressive feature that enhances transparency and trust. Impressions are inserted one by one, while the near-silent operation and an impressive scanning speed of just 15 seconds per scan ensure maximum comfort.
The open standard output formats allow seamless data processing – both in industrial production centers and in all common CAD software solutions in the industry. Additionally, the free Stage one is fully compatible with Noah and winIPRO.
With its slim design, this 3D scanner is also perfect for the smallest branches.
Our audiology scanners – free Stage one, mono Scan, free Stage twin, duo Scan, and ds Production – are specially designed for digitizing ear impressions and are precisely tailored to your needs. As a HIMSA member, smart optics has equipped all scanners with a Noah interface, allowing seamless integration of the scanning software into your Noah system.
Technical Specifications
| Property | Details |
|---|---|
| Dimensions (W × L × H) | 186 × 292 × 348 mm |
| Weight | 6 kg |
| Connections | USB 3.0 |
| Power Supply | 100 - 240 VAC, 50/60 Hz |
| Housing | PUR integral hard foam & acrylic glass |
| Power Switch | Rocker switch (rear) |
Warranty
| Service | Details |
|---|---|
| Warranty | 36 months |
| Extended Warranty | 12 months |
Measurement
| Property | Details |
|---|---|
| Model | free Stage one |
| Accuracy (ISO 12836) | < 9 µm |
| Scan Time | 13 seconds |
| Simultaneous Impressions | 1 |
| Measuring Technology | Structured light triangulation |
| Light Source | White light LED |
| Scan Quality | Variable |
| Data Formats | STL, HPS, PLY, ASCII, MSH |
| Additional Matching Time | 3–10 seconds (depending on PC configuration) |
Features
✅ Capacitive touch sensor
✅ Status LED
✅ Open scanning
✅ Color texture scanning
✅ Quick start function
✅ Annotate & comment
✅ Various naming methods
✅ Barcode naming (Accessory required)
✅ 3D calibration (Accessory required)
✅ Project export including FTP upload
Software & System Requirements
| Property | Minimum Requirements | Recommended Requirements |
|---|---|---|
| Operating System | Windows 10 (64-bit) | Windows 11 (64-bit) |
| Processor | Dual Core CPU, i3 | Quad Core CPU, i5 |
| RAM | 4 GB RAM | 8 GB RAM |
| USB Port | USB 3.0 Port | USB 3.0 Port |
| Hard Drive | 40 GB free space | 80 GB free space |
| Graphics Card | 1 GB VRAM | 2 GB VRAM |
| Scanning Software | aural Scan | aural Scan |
| Compatibility | Noah system, winIPRO | Noah system, winIPRO |
Scope of Delivery
📦 Included in delivery:
- free Stage one
- Object holder
- Power cable
- USB 3.0 cable
- Scanning software with calibration data
