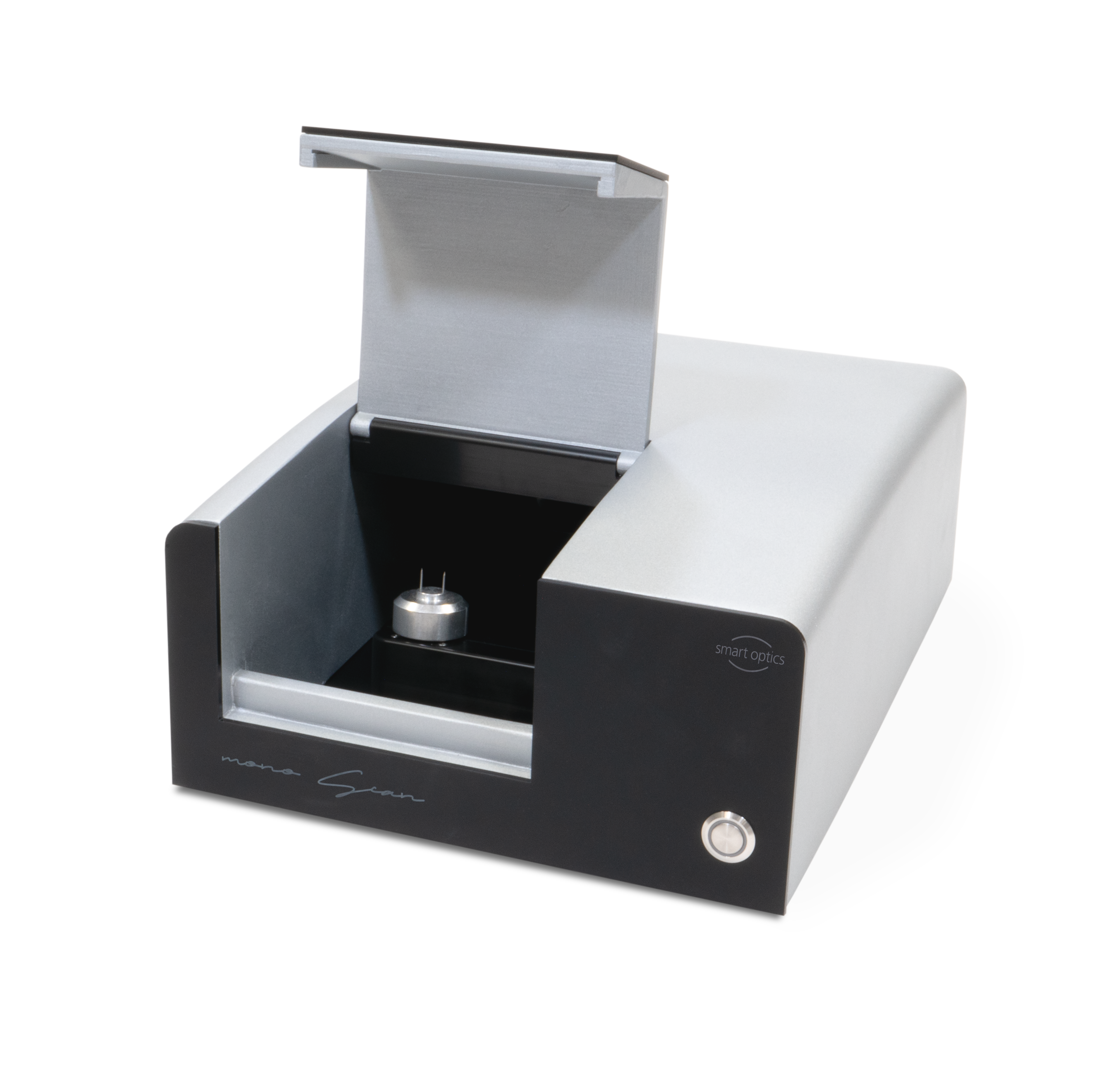

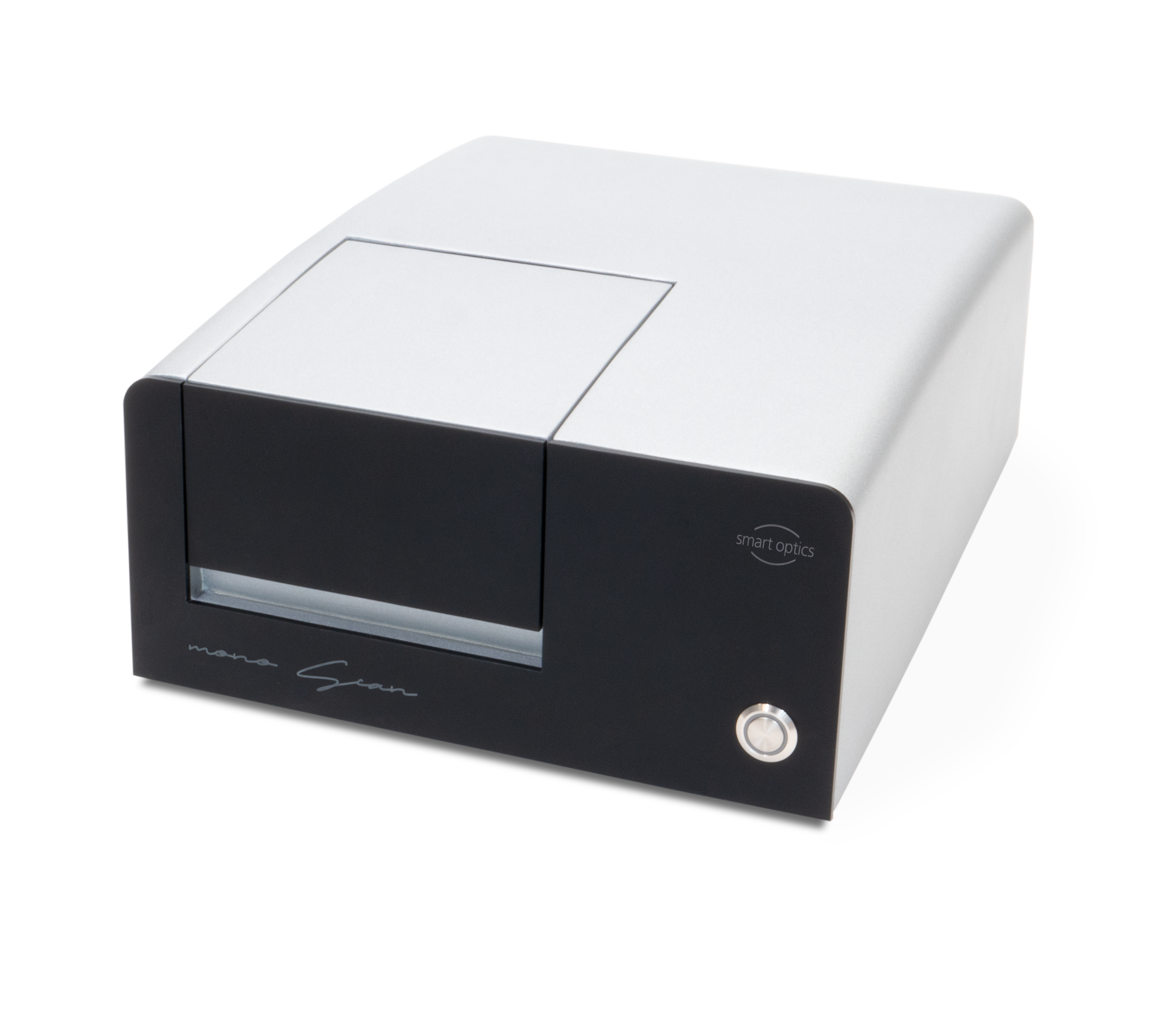

Smart Optics mono-Scan
Product number:
SW10017
Product information "Smart Optics mono-Scan"
Key Features and Benefits
- Capture of single ear impressions within seconds
- Perfect for beginners – no prior experience needed
- Open standard formats (STL, etc.) for seamless integration
- Compact design with intuitive touch operation
- Optional color texture scanning
- Compatible with modern audiology software
Technical Specifications
- Dimensions: 280 × 332 × 135 mm
- Weight: 5.5 kg
- Housing: PUR integral foam & acrylic glass
- Power supply: 100–240 VAC, 50/60 Hz
- Connection: USB 3.0
- Scan time: approx. 13 seconds *
- Accuracy: < 9 µm (ISO 12836)
- Resolution: variable
- Measuring method: Structured light triangulation
- Light source: White LED
- Output formats: STL, HPS, PLY, ASCII, MSH
System Requirements
Minimum:- Windows 10 (64-bit), i3, 4 GB RAM
- Graphics card with 1 GB RAM
- USB 3.0, 40 GB free storage
- Windows 11 (64-bit), i5, 8 GB RAM
- Graphics card with 2 GB RAM
- USB 3.0, 80 GB free storage
Scope of Delivery
- mono Scan
- Object holder
- USB 3.0 cable
- Power cable
- Scanning software incl. calibration data
Warranty
36 months standard warranty, optionally extendable by 12 months.
* Depending on system configuration, scan time may vary. Barcode naming and advanced features depend on the software used.
